Cross-cut venti­lation units
Standort

Ceneri Base Tunnel

Cross-cut ventilation units in detail:

  • 46 cross-cuts
  • 92 fans
  • 138 flaps

approx. 4,500 m² false bottom construction
approx. 13,000 pc. sheets, 35 kg/each
Total weight of the sheets: over 400 tons

Client

AlpTransit Gotthard AG


Realisation

2015 – 2017

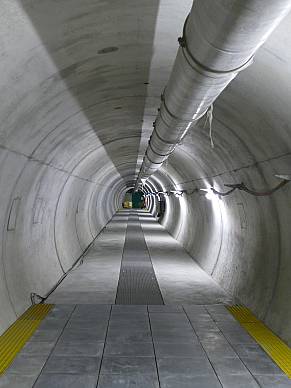

Impressions
